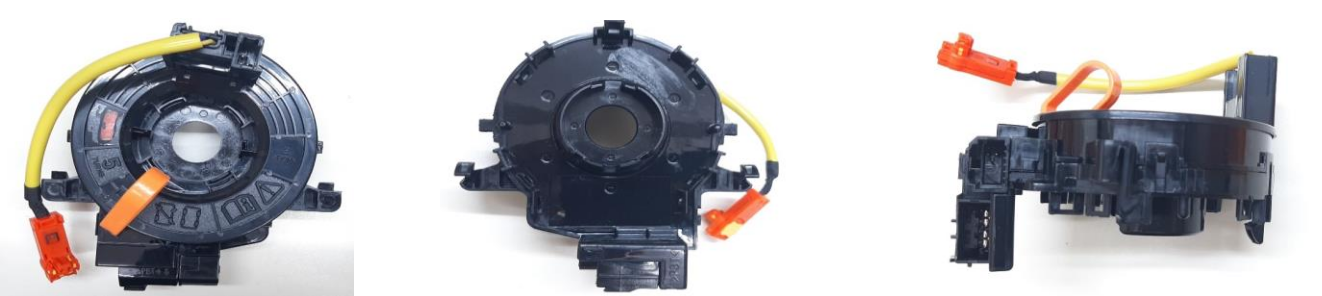

AI-801 CLOCK SPRING - TYTA-INNOVA TYPE-1
COUPLERS : 3
PINS : 3+3+4=10 PINS
CABLES : 1
APPLICATION : TYTA-INNOVA 1ST GEN (2005-2012) INNOVA
1ST GEN FACELIFT 2.0 DLX/2.5DLX/2.5 STD
(2012-16)
AI-802 CLOCK SPRING - TYTA-INNOVA TYPE-2
COUPLERS : 4
PINS : 10+4+12+4= 30 PINS
CABLES : 1
APPLICATION : TYTA-INNOVA 2ND GEN,ETIOS LIVA (2011-2013) &
(2013-NOW), ETIOS CROSS (2010-16),COROLLA
ALTIS 10TH GEN, FORTUNER 1ST GEN
AI-803 CLOCK SPRING - TYTA-INNOVA TYPE-4
COUPLERS : 4
PINS : 10+4+12+4= 30 PINS
CABLES : 2
APPLICATION : TYTA -INNOVA (HI END)

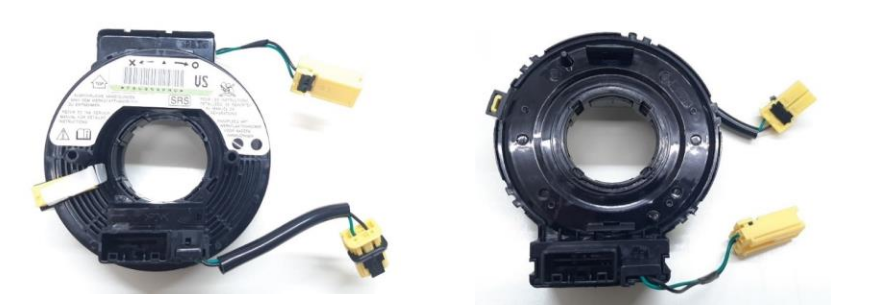

AI-811 CLOCK SPRING- H-CITY T5
COUPLERS : 2
PINS : 2+2=4
CABLES : 2
APPLICATION : HNDA -CITY 5TH GEN (2009-2011)
AI-812 CLOCK SPRING- H-CITY T7
COUPLERS : 3
PINS : 6+6=12 PINS
CABLES : 0
APPLICATION : VW POLO, VENTO, AMEO, SK-ODA
RAPID,FABIA

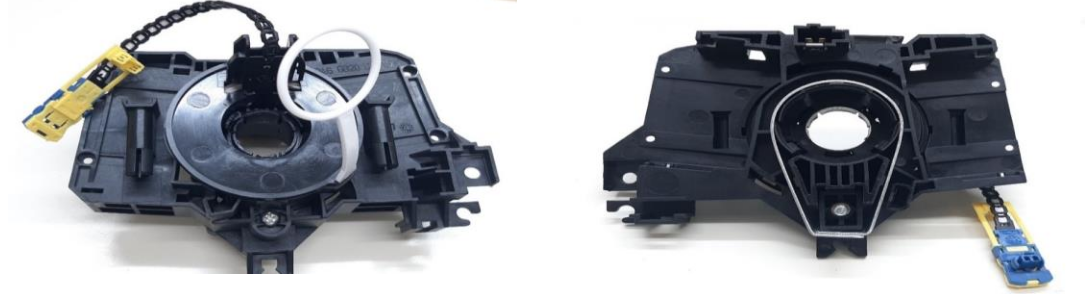

AI-819 CLOCK SPRING- DUSTER
COUPLERS : 1
PINS : 2
CABLES : 1
APPLICATION : REN-DUSTER 1ST GEN (2012-2015)
AI-821 CLOCK SPRING-HY-I-20 FLUIDIC (14CH)
COUPLERS : 3
PINS : 10+4+10= 24 PINS
CABLES : 1
APPLICATION : HYNDAI GRAND i10, XCENT, VERNA FLUIDIC
4TH GEN, VERNA FLUIDIC 4TH GEN
F/L,XCENT F/L,GRAND I 10 F/L
AI-822 CLOCK SPING-HY-CRETA O/M
COUPLERS : 3
PINS : 12+4+12=28 PINS
CABLES : 2
APPLICATION : HYNDAI-CRETA 1ST GEN
AI-823 CLOCK SPRING-HY-I-20 ELITE
COUPLERS : 3
PINS : 12+4+12=28 PINS
CABLES : 1
APPLICATION : HYNDAI- CRETA 1ST GEN (2015-2020),
i-20 ACTIVE 2ND GEN (2014-19), i-20 ELITE
2ND GEN (2014-2020)
AI-831 CLOCK SPRING-MS-SWIFT (T-1 )/SX4
COUPLERS : 3
PINS : 2+2+2=6
CABLES : 1
APPLICATION : MSL-SWIFT/SWIFT DZIRE 1ST GEN (BASE
MODEL), SX4
AI-832 CLOCK SPRING-MS-ERTIGA
COUPLERS : 3
PINS : 12+12+4=28 PINS
CABLES : 1
APPLICATION : MSL-ERTIGA 1ST GEN, BREZZA

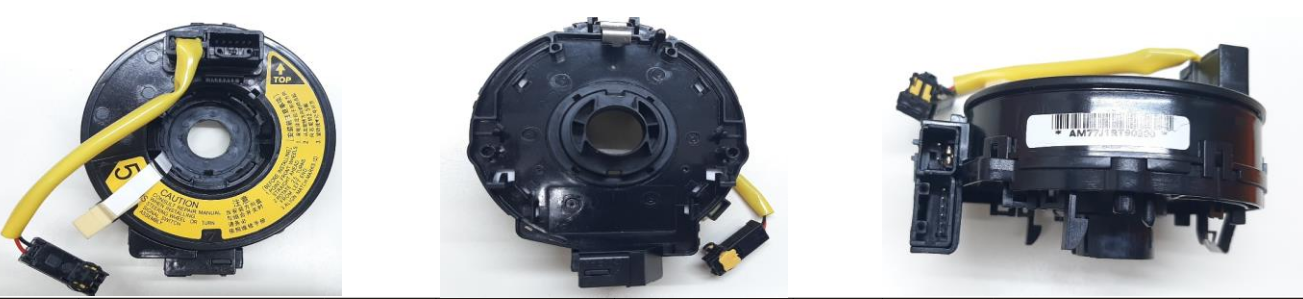

AI-833 CLOCK SPRING-MS-SWIFT (T-2)
COUPLERS : 3
PINS : 6+6+2=14 PINS
CABLES : 1
APPLICATION : CELERIO 1ST GEN ZXI,ZDI & CELERIO F/L
(2013-ONWARDS),CIAZ (2014-2018),
ERTIGA 1ST GEN 2012-2018(ZXI,ZDI,VXI),
SWIFT/DZIRE 2ND GEN (2011-2017),
VITARA BREZZA ZDI (2016-19)

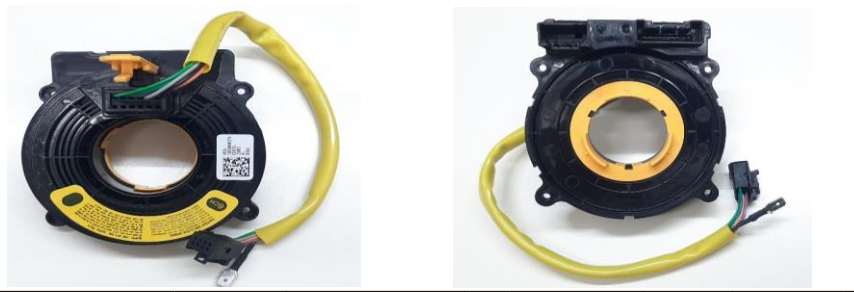

AI-841 CLOCK SPRING-MHDR-XYLO (6-CH)
COUPLERS : 2
PINS : 6+0=6 PINS
CABLES : 1
APPLICATION : MHDR- SCORPIO VLX 2ND GEN (2008-2014)
AI-842 CLOCK SPRING-MHDR-SCORPIO (8-CH)
COUPLERS : 2
PINS : 4+8=12 PINS
CABLES : 2
APPLICATION : MHDR SCORPIO VLX REFRESH 2ND GEN
(2008-2014), SCORPIO 2ND GEN GETAWAY
SC (MHAWK 2014 ONWARDS)

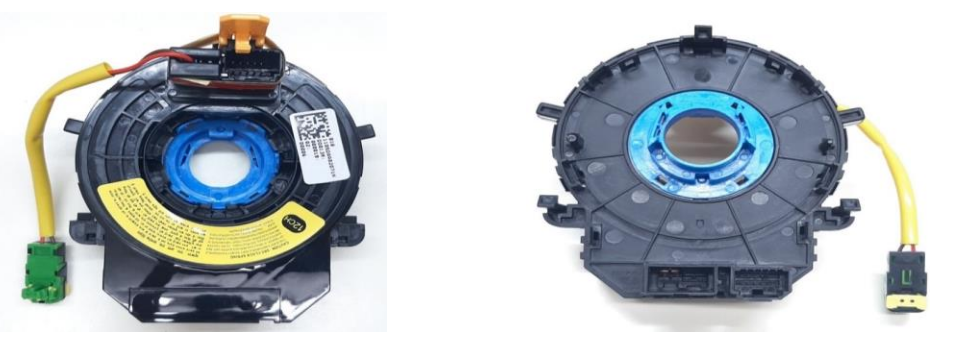

AI-843 CLOCK SPRING-MHDR XUV -500
COUPLERS : 3
PINS : 10+10+4= 24 PINS
CABLES : 1
APPLICATION : MHDR-XUV 500 1ST GEN,2ND GEN & 2ND
GEN FACELIFT

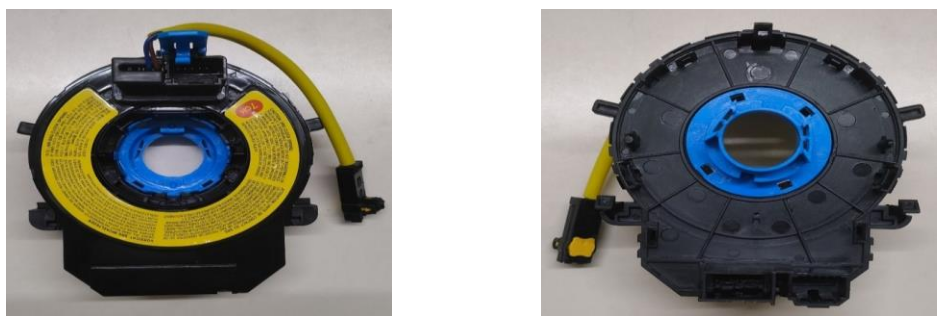

AI-824 CLOCK SPRING-i-20 (7 CH)
COUPLERS : 3
PINS : 5+2+5=12 PINS
CABLES : 1
APPLICATION : HYNDAI I-20 N/M
AI-825 CLOCK SPRING-i-10
COUPLERS : 2
PINS : 5+2+5=12 PINS
CABLES : 1
APPLICATION : HYNDAI I-20 N/M

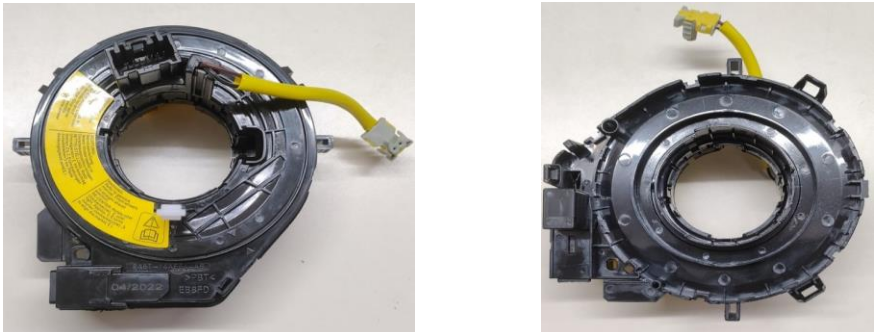

AI-851 CLOCK SPRING-ECO SPORT
COUPLERS : 2
PINS : 7+9= 16 PINS
CABLES : 1
APPLICATION : FRD- ECO SPORT
